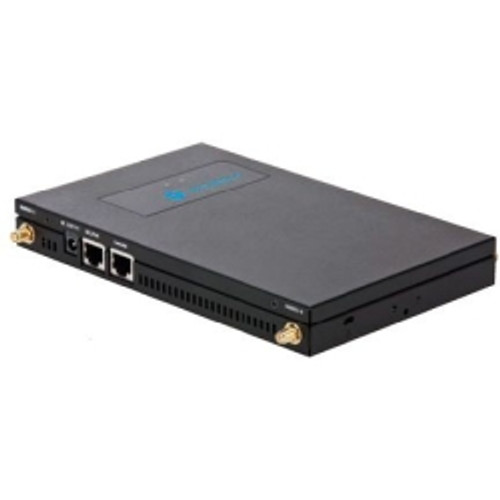

  • Motorola Solutions - AP6522 802.11N Wireless Access Point 66030

Motorola Solutions - AP6522 802.11N Wireless Access Point 66030


Request a quote below for our best pricing.

E-mail us  |  (866) 943-4737 or (570) 718-1220.
2.00 LBS
Calculated at checkout

Product Description

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network. The AP 6522 is a site survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

The AP 6522 is a multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN). The access point features MIMO radios with superior receive and transmit sensitivity, a console port for configuration, and a GiGE LAN/WAN POE enabled port for local or remote network connectivity. This easy-to-deploy solution delivers the speed and reliability to support the increase in WLAN traffic from employees bringing their own devices (BYOD) and supports the most demanding applications, including real-time video and voice. The embedded WiNG 5 intelligence ensures that traffic is locally forwarded along the most efficient paths without sacrificing quality of service and security implemented at the access point itself. One radio can be used for client access while the second radio is used for simultaneous client access on a different frequency band or as a dedicated sensor on both 2.4 and 5.0 GHz bands for security and troubleshooting.

The AP 6522 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to automatically fill RF holes and ensure uninterrupted mobile user access.


Broadband Frequency Band 2.4 GHz / 5 GHz
Frequency Range 2412-2472 MHz / 5180-5825 MHz
Description AP 6521 wireless access point, 802 11N. Independent 2-radio, external antenna.
Temperature Range 0-40 deg C
Mounting Wall, Ceiling , Open Beam (with KT-135628-01)
Item Width 5 in
Item Height 1 in
Item Length 7.8 in
Protocol 802.11a, 802.11b, 802.11g, 802.11n
Transmit Power +24 dBm, +23 dBm (dual antenna)
Data Connectors RJ45 Auto-sensing 10/100/1000Base-T Ethernet
Power Supply Standards-based IEEE 802.3af
Mfg. Warranty Lifetime Limited
